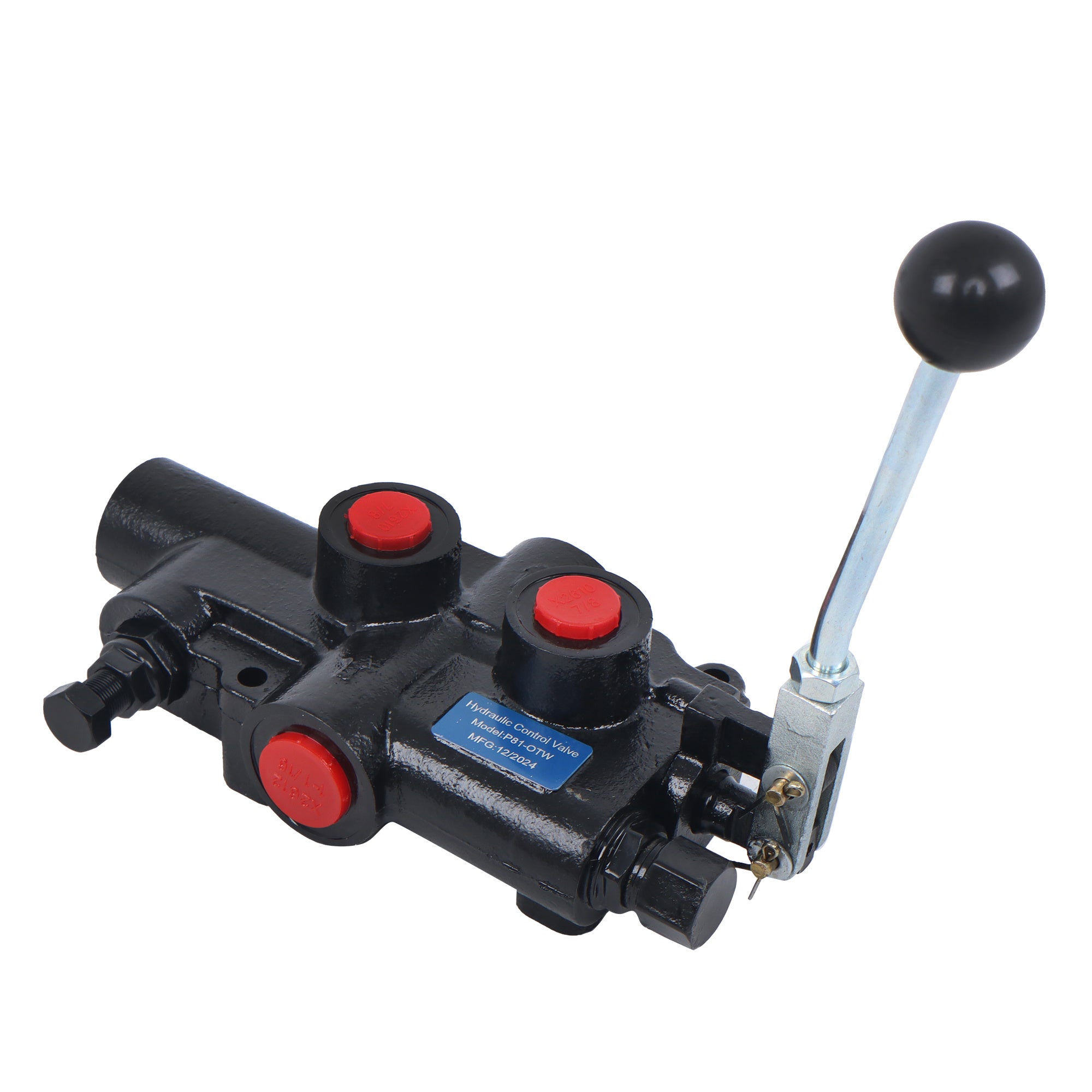

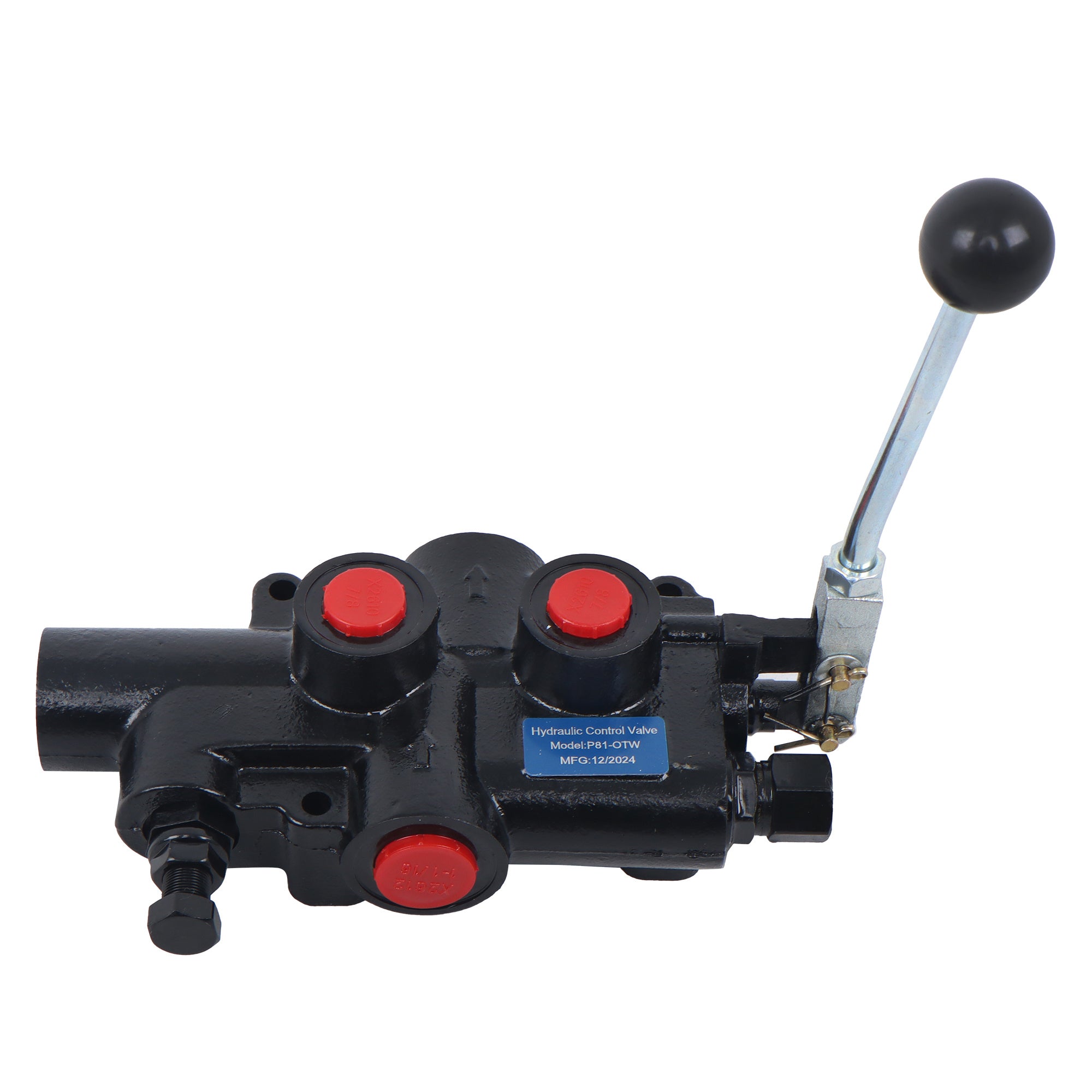

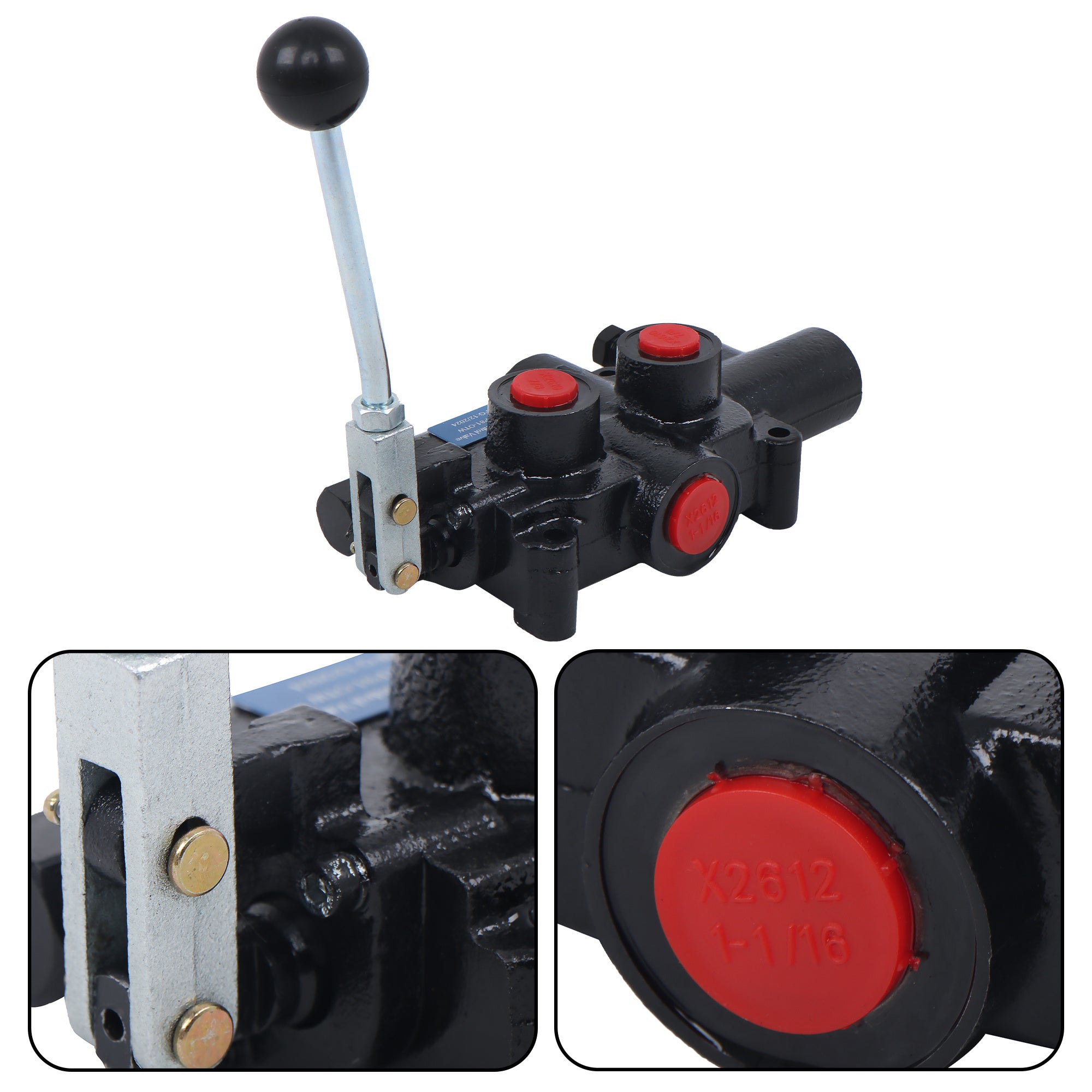

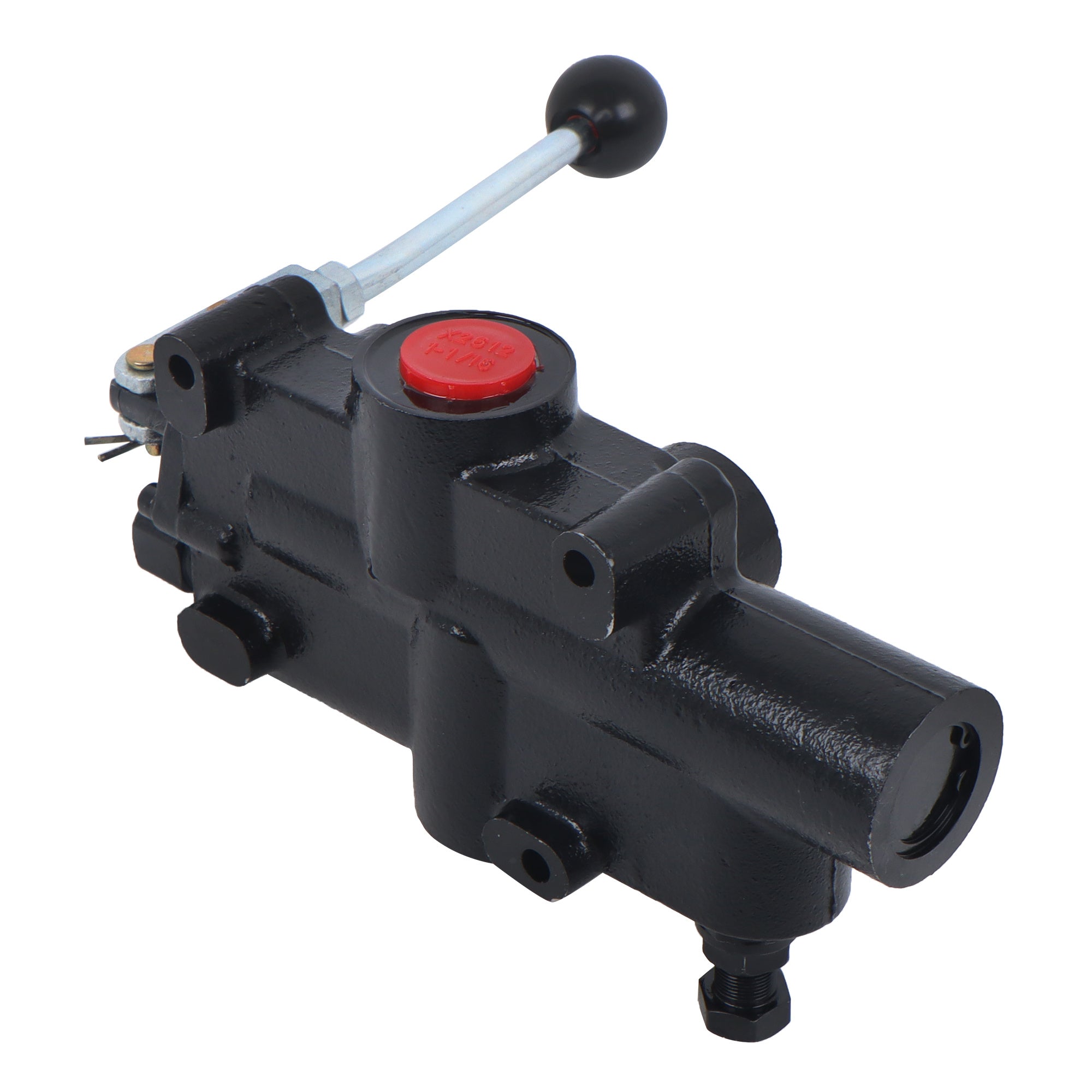

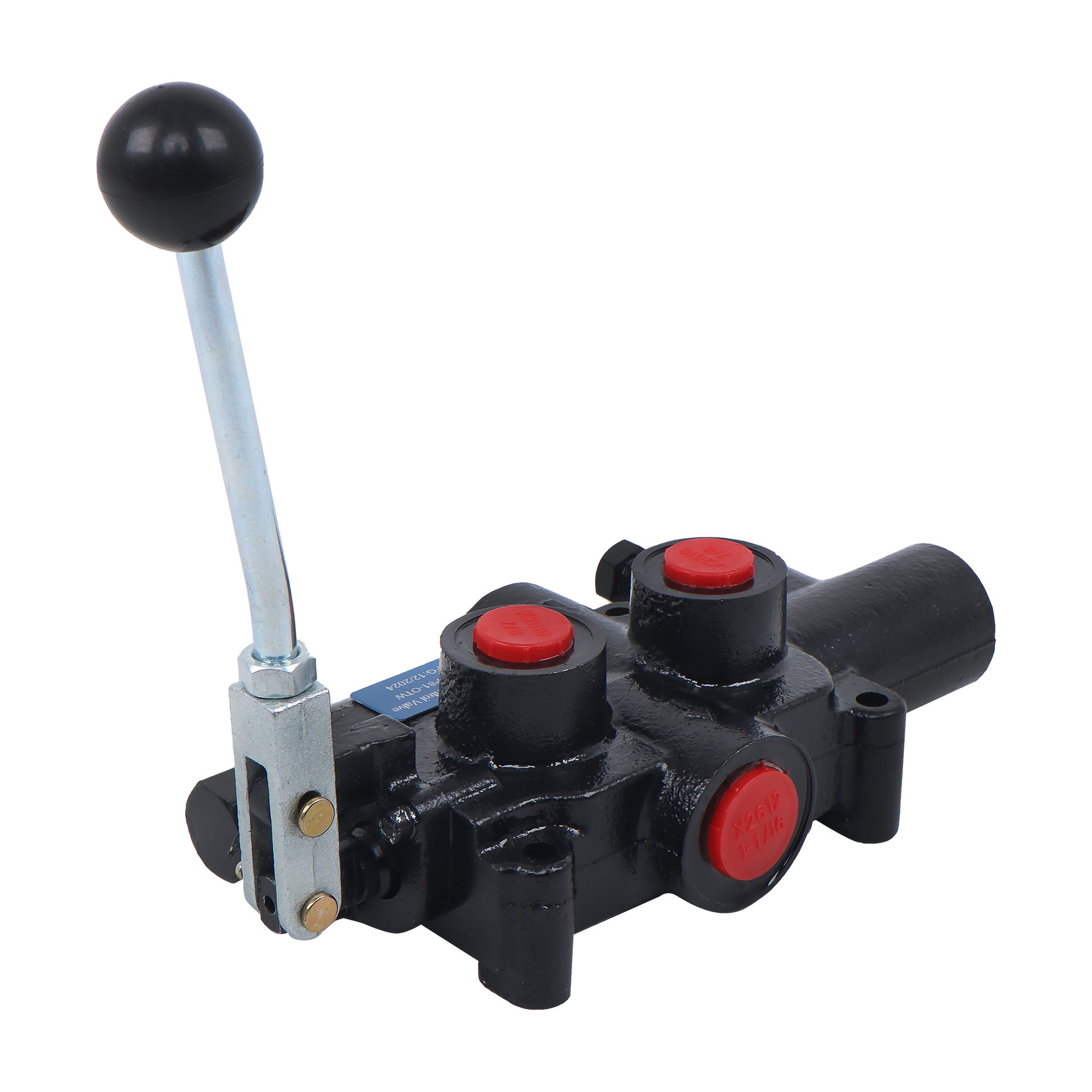

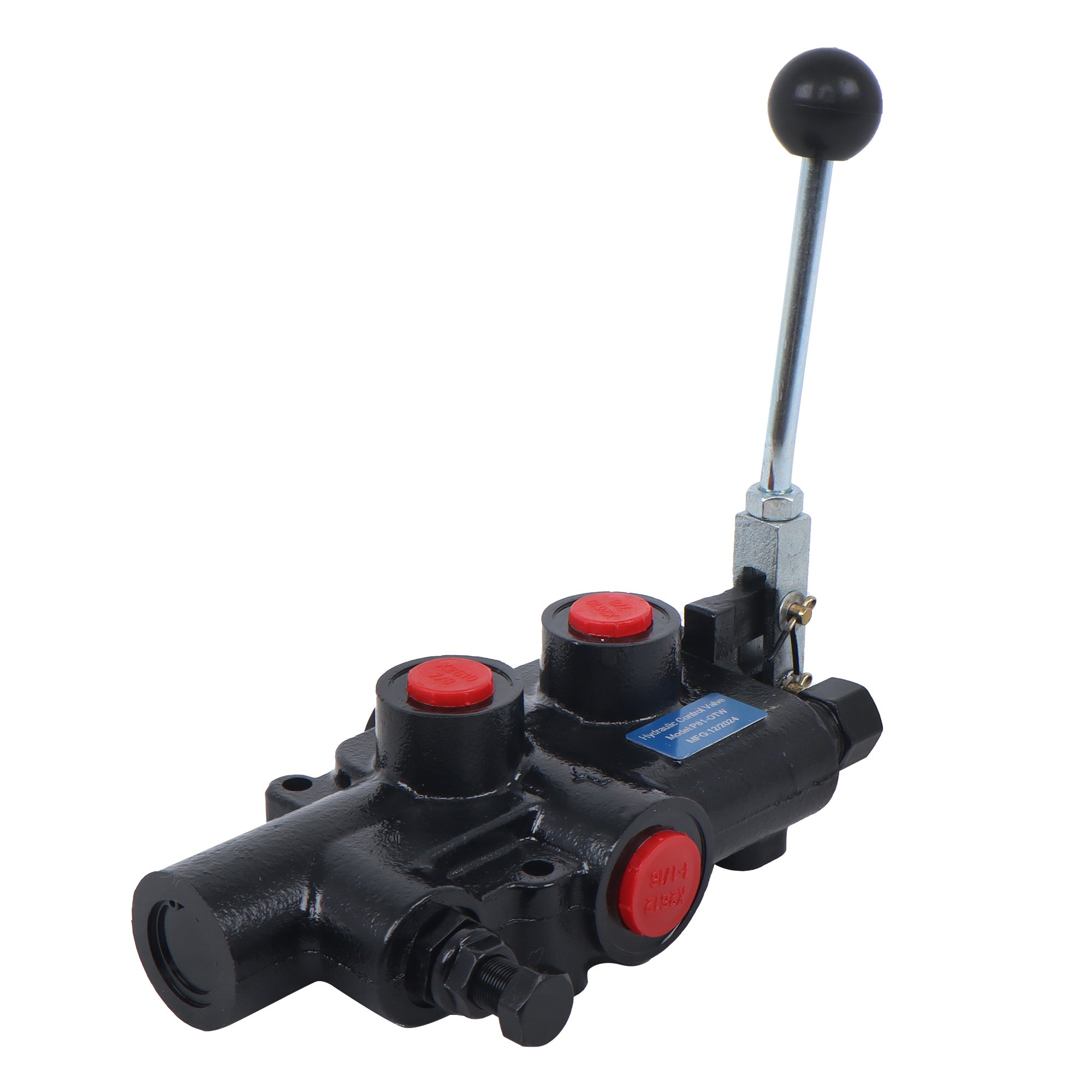

1 Spool 21 GPM Hydraulic Log Splitter Control Valve High Speed w/Detent

Specification：

• 1 Spool Log Splitter valve
• Flow 21 GPM
• 4300 PSI MAX Pressure
• Adjustable release valve
• Inlet port SAE 12
• Outlet port SAE 12
• Working ports SAE 10
• Spring center to neutral all spools
• 4 Way 3 Pos Tandem Center
• Spring to Neutral and Press Release Detent
• 1000 to 2000 PSI for automatic switch-off
• Durable cast iron body
• Fluid temperature from 5 to 176F
• Mounting with 2 bolts M8
• Handle mounting vertically
• Handle included

Description：

Hydraulic valves play a significant role in a hydraulic system by managing and directing the hydraulic fluid flow. ???????  Spools are made of carburized steel with hard chrome plating.  The spool levers can be installed vertically or horizontally.  Compact design allows using the control valve in small tractors, tractors loaders, log splitters & other mobile applications.
