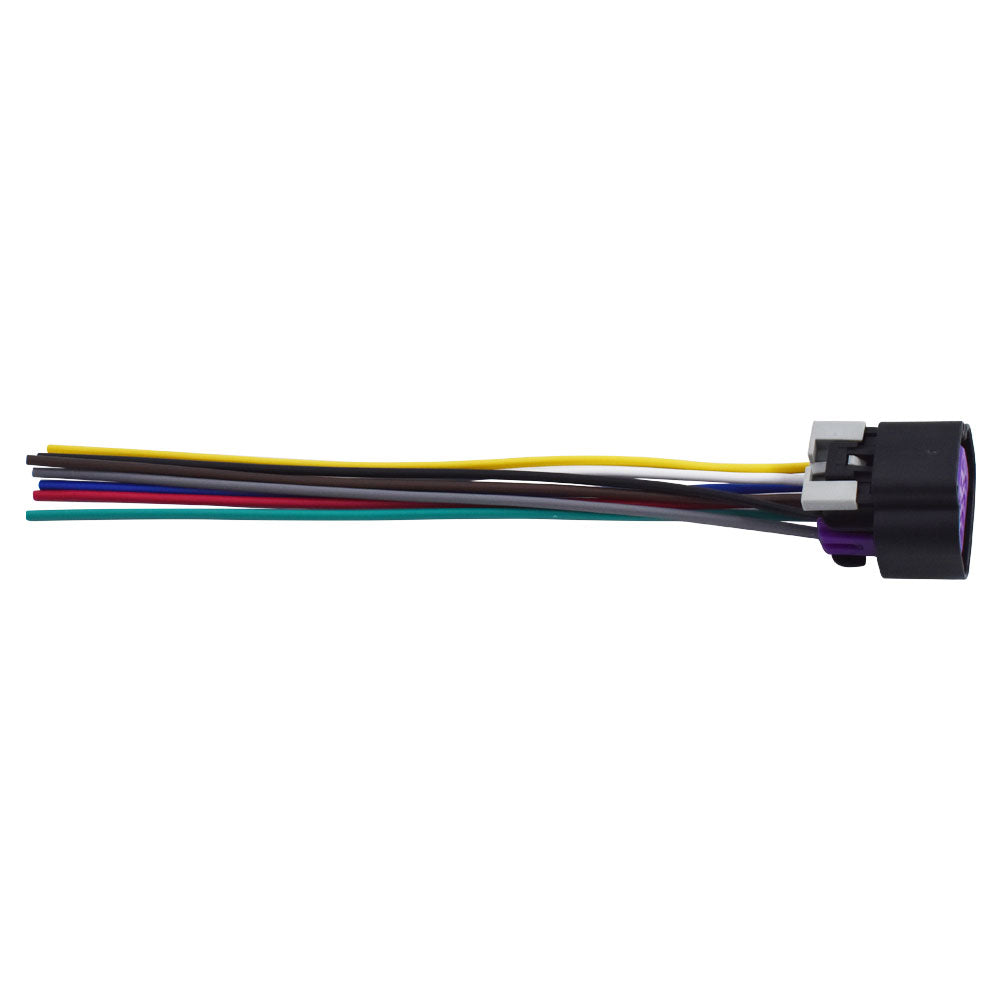

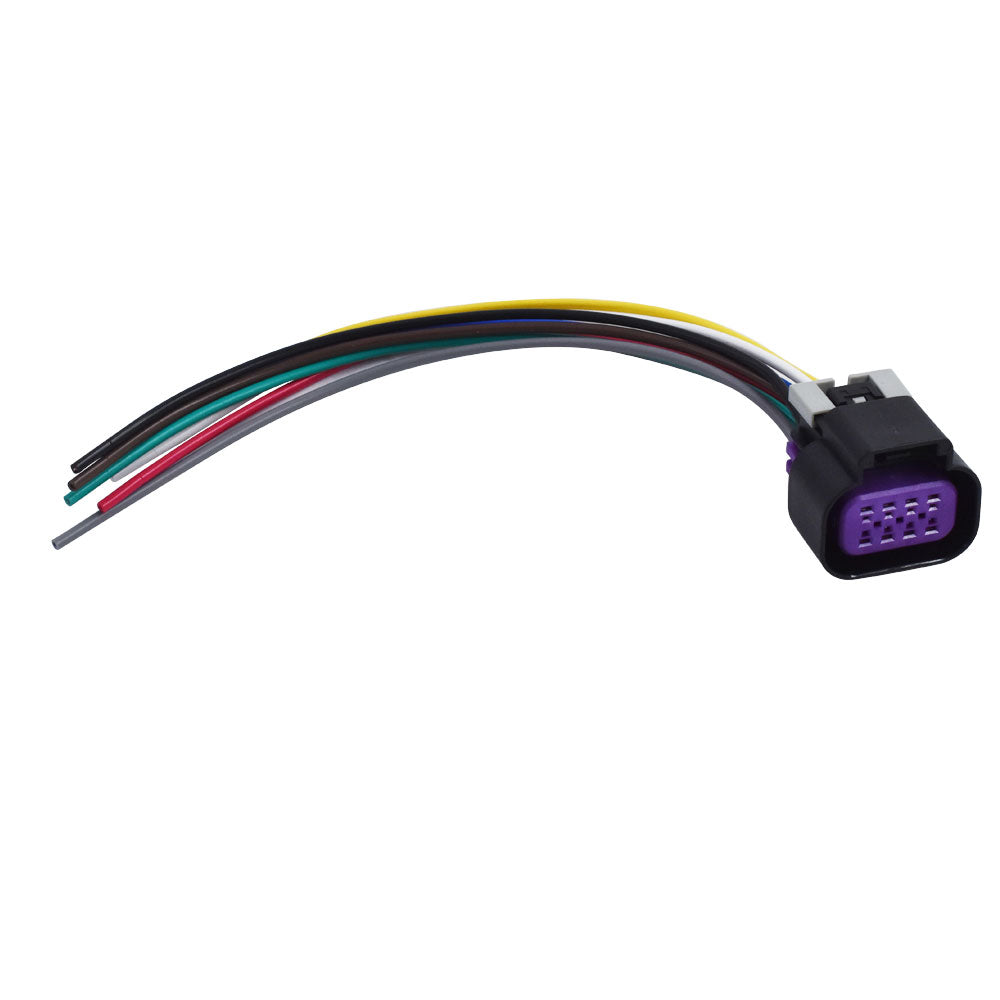

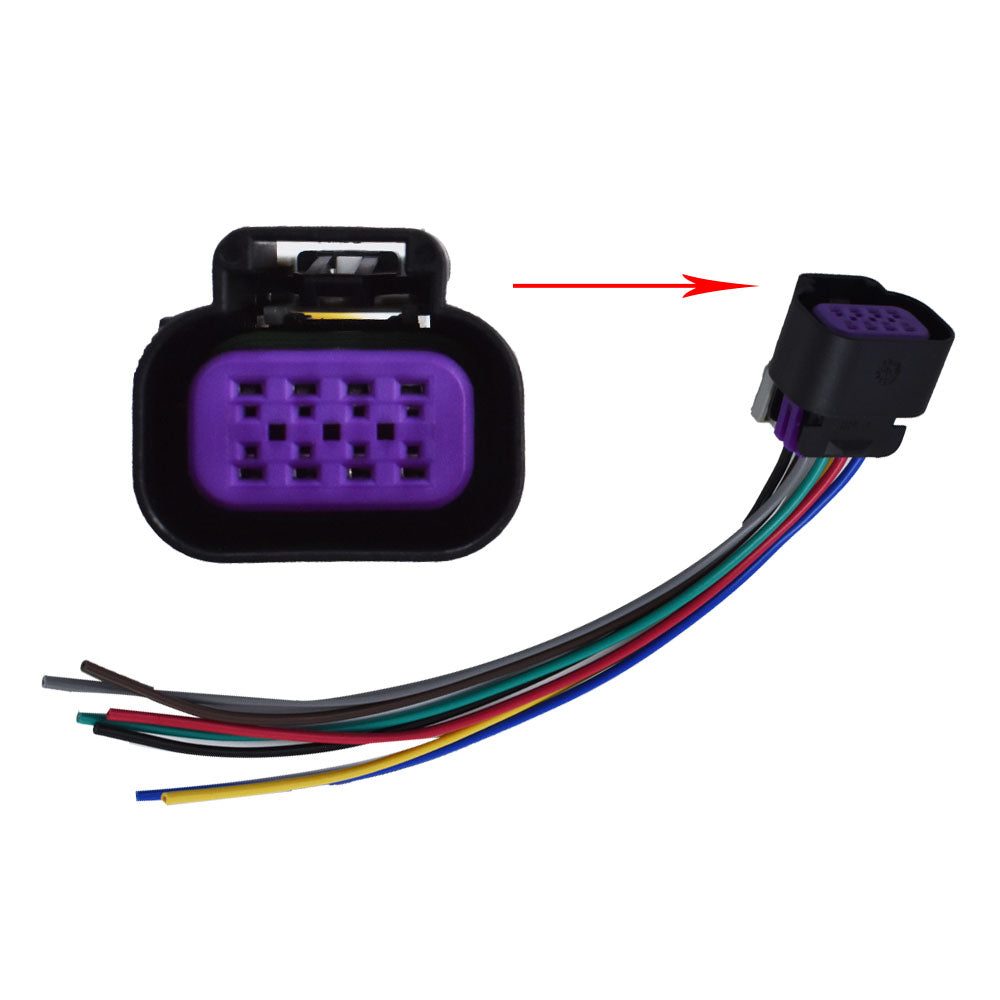

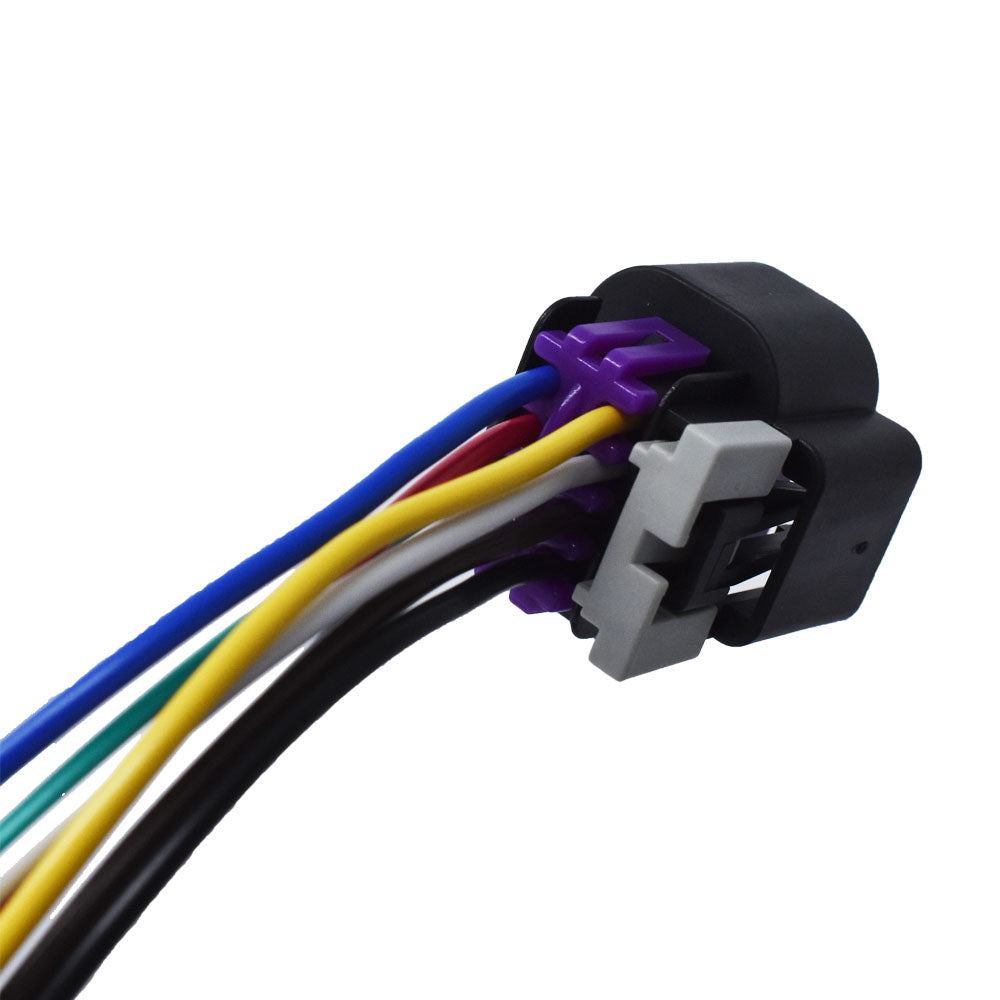

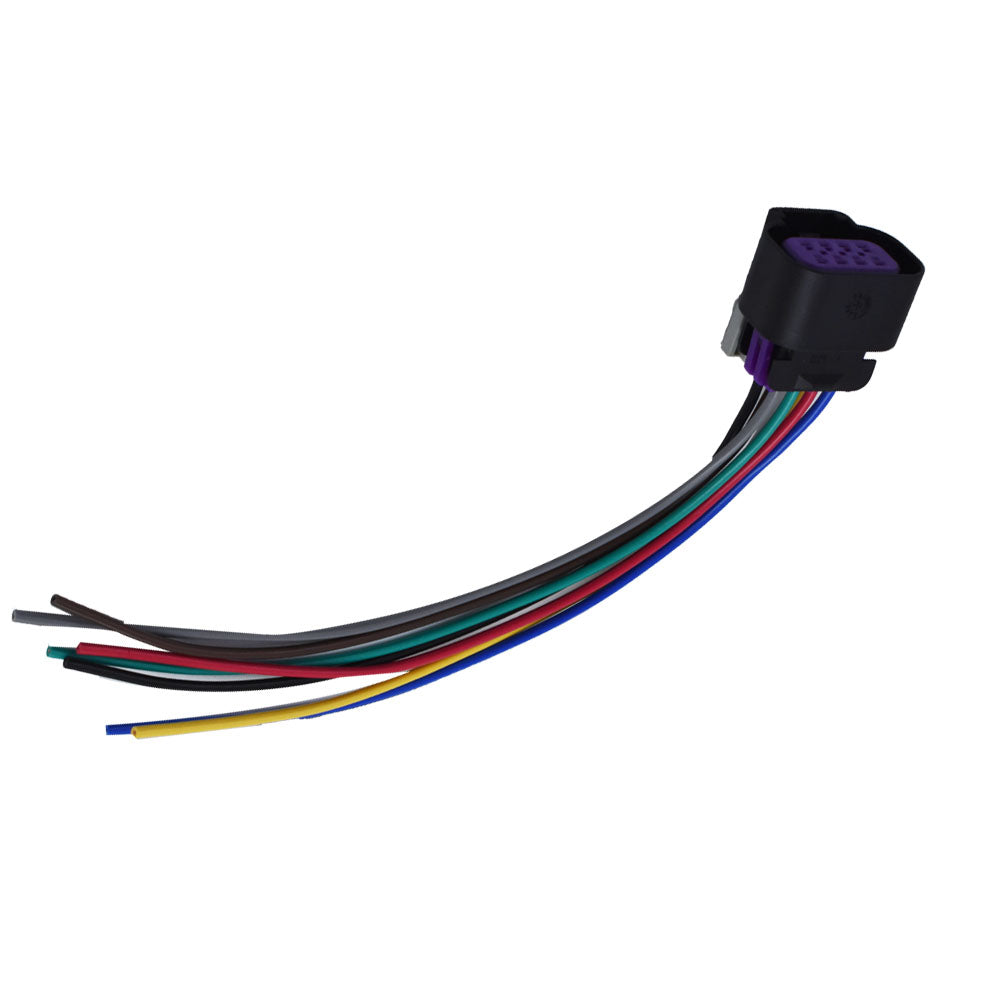

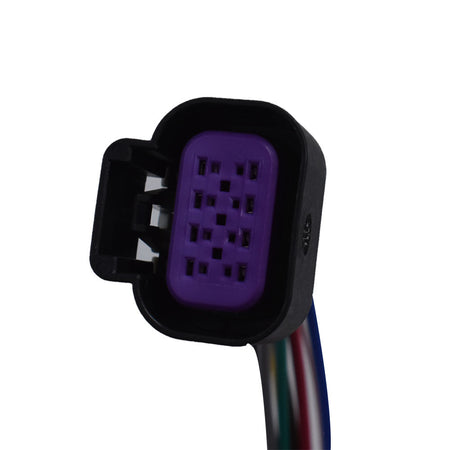

1 pcs Throttle Body Pigtail 100-00341 Fit For GM 6.0L LQ9 2003-2007

In stock
No reviews
Black Friday Sale! Over $100 Get 20% off. Code: BF20-OS!
$9.17
$9.29 -1% $9.17
Free Shipping
Secure Payment
30 Day Free Return
Warranty Guarantee

Product details

  • Material Plastic
  • Color Black
  • OE 1-341
  • Warranty 1 Year
Have Questions?
Market@labworkauto.com
Description Reviews

CONNECTOR PINOUT DETAILS:

PIN WIRE FUNCTION

A 18ga YEL TAC MOTOR CONTROL - 1

B 18ga WHT TP SENSOR 2 GROUNDC18ga BRNTA

C 18ga BRN MOTOR CONTROL - 2

D 18ga BLK TP SENSOR 1 GROUND

E 18ga LT BLU TP SENSOR 2 POWER (5V)

F 18ga PPL TP SENSOR 2 SIGNAL

G 18ga DK GRN TP SENSOR 1 SIGNAL

H 18ga GRY TP SENSOR 1 POWER (5V)

Package:

1x pigtail
