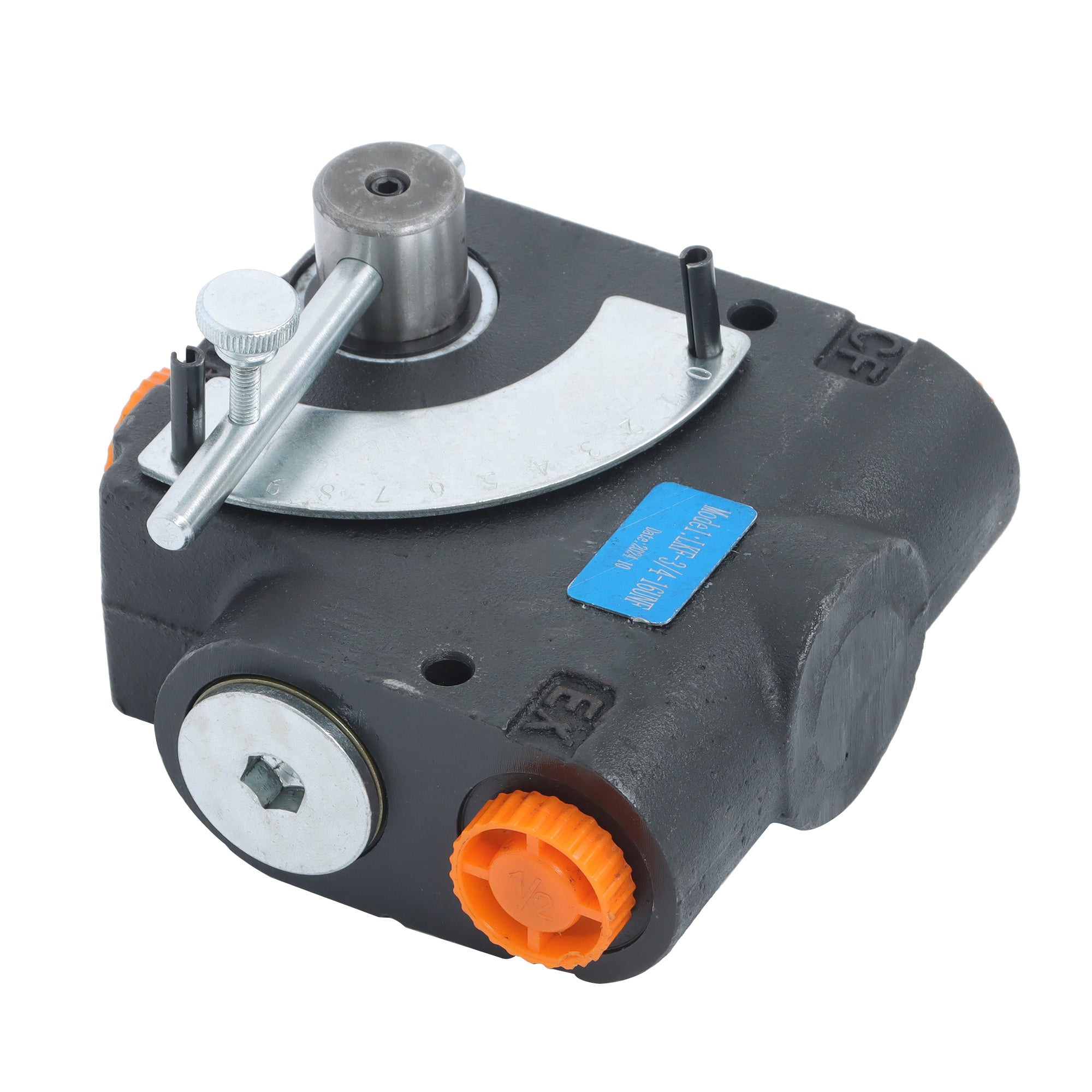

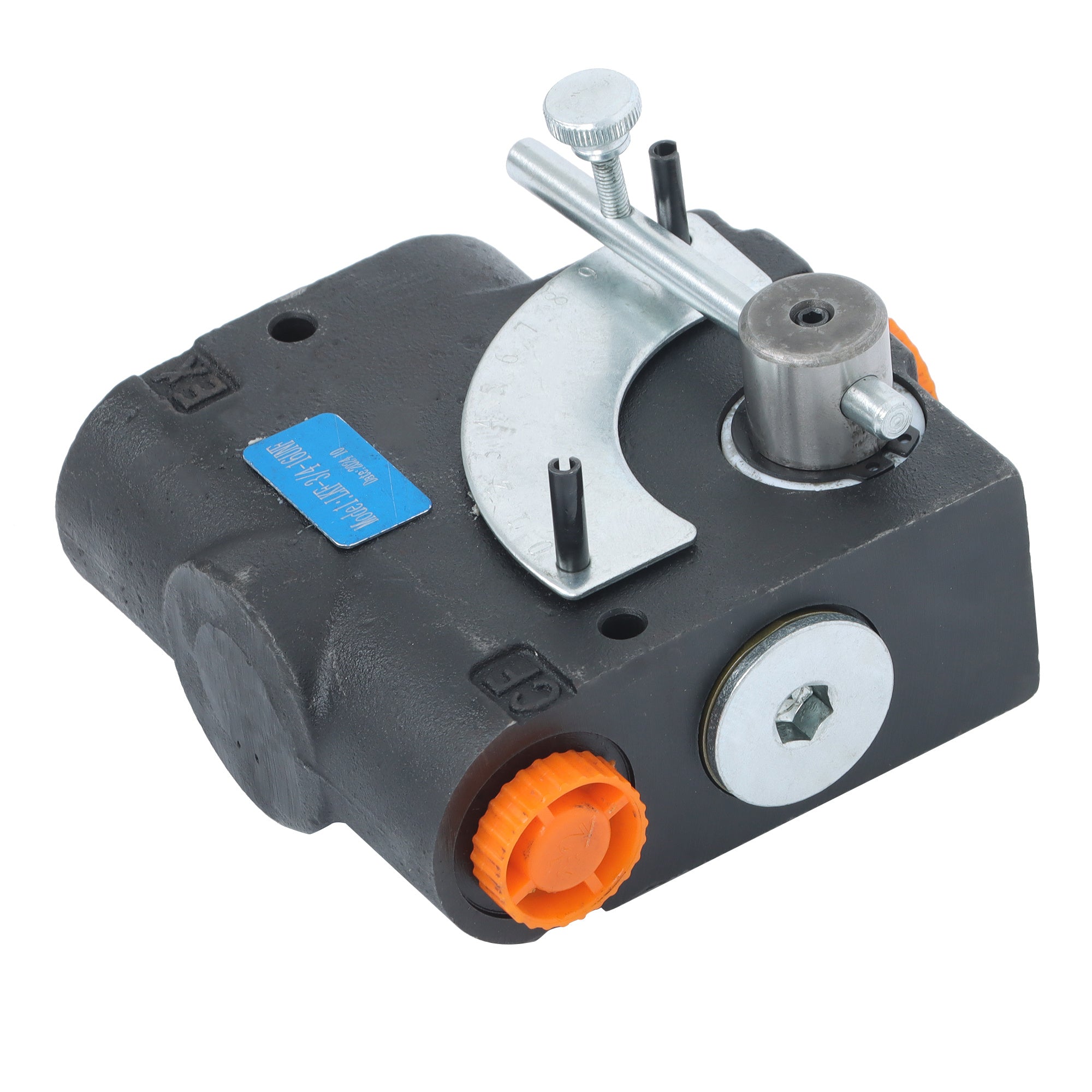

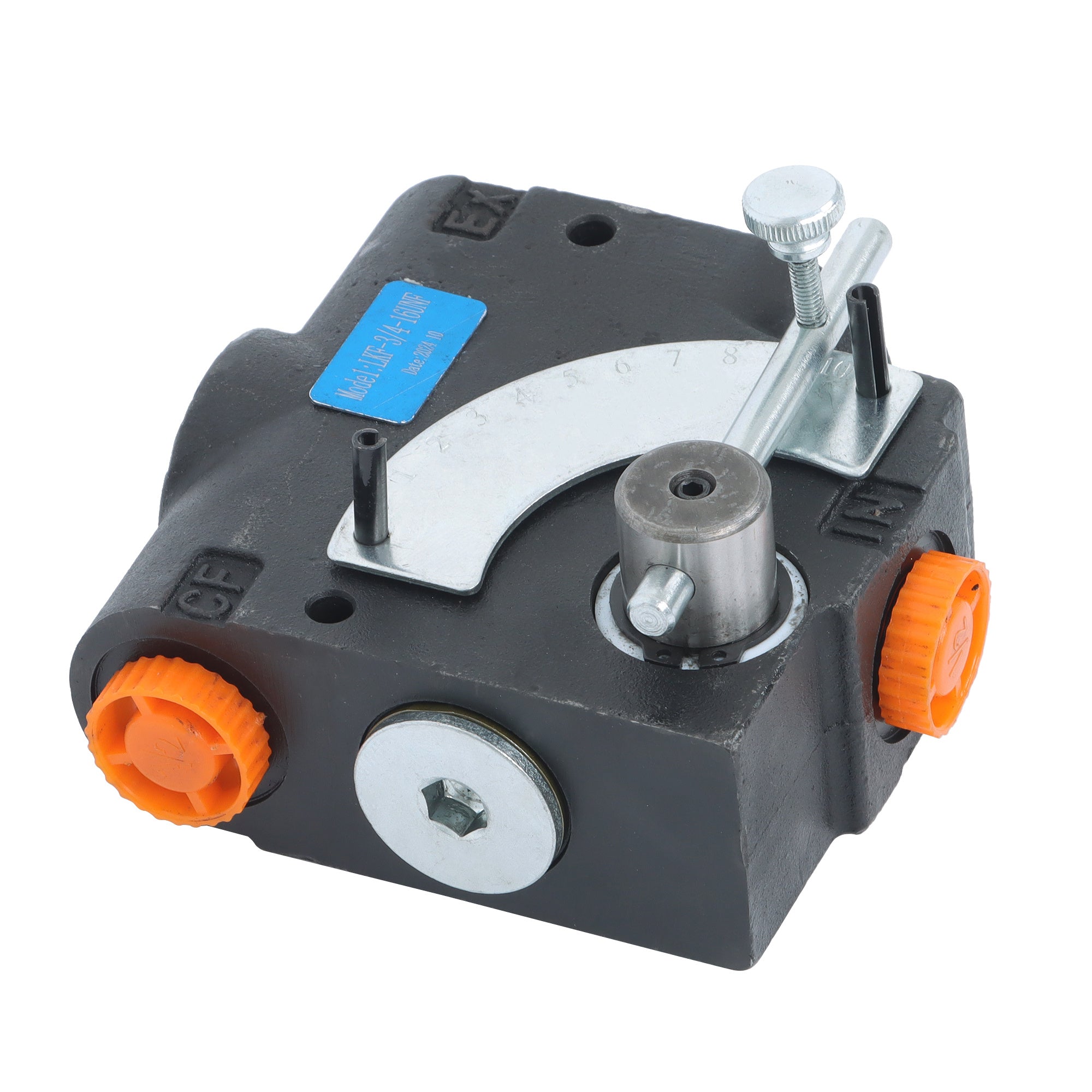

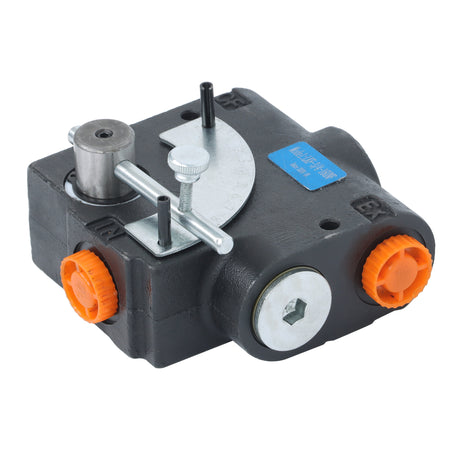

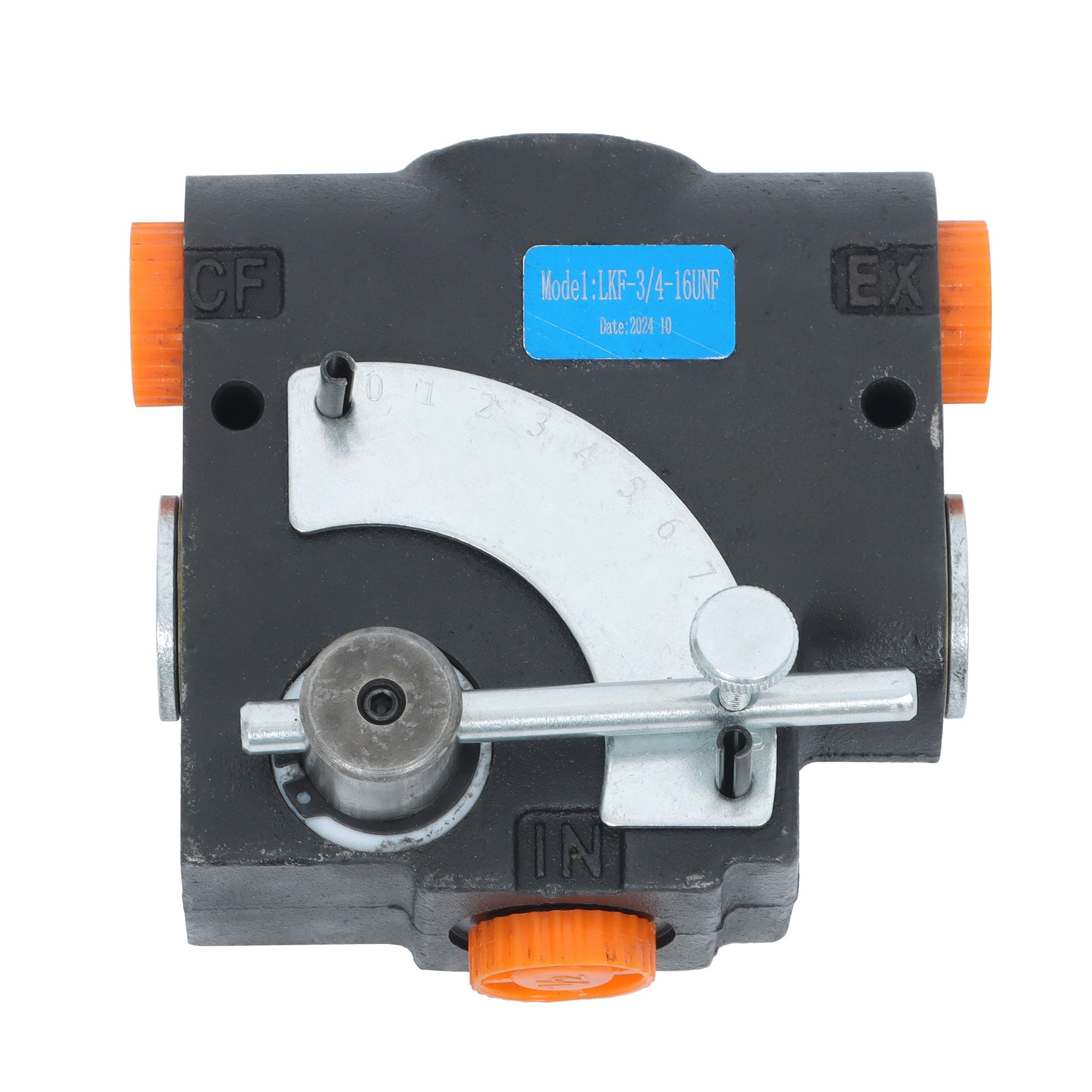

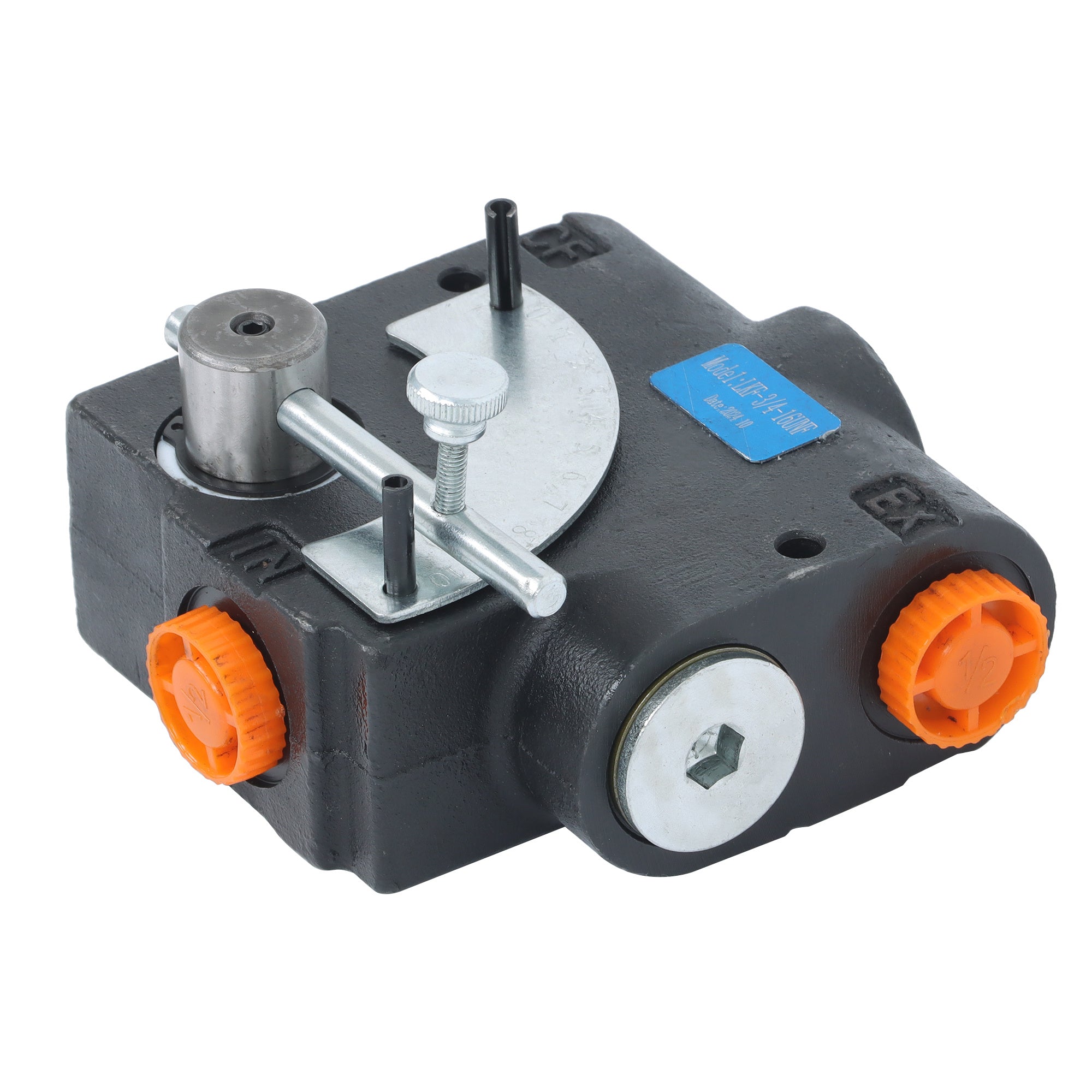

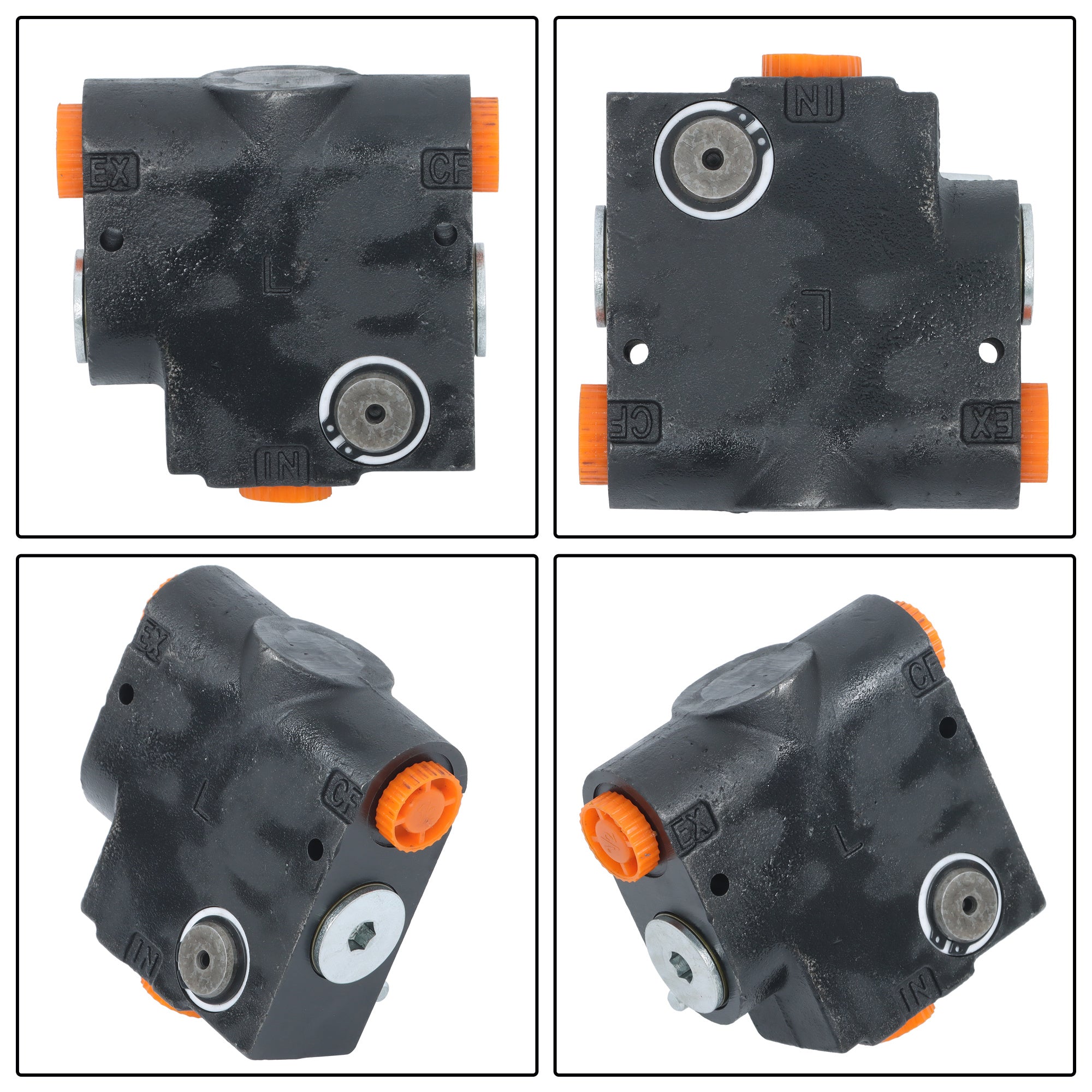

0-16 GPM #8 SAE Ports Hydraulic Adjustable Variable Flow Control Valve 3000 PSI

Description：

This valve is a full-rangepressure compensating variable flow control.It is designed so that the orifice area varies as the lever is rotated. The outlet flow is smooth and constant regardless of the pressure on the control flow or excess flow ports. An adjustable ball spring relief allows for pressure compensated flow up to the pressure setting on the relief. Relief valves are preset at 1500 psi and field adjustable from 75 to 3000 psi.

Specification：

-Adjustable Flow Rate: 0-16 GPM

-Cast Iron Body

-Buna N O-Ring Seals

-Port Size: #8 SAE (3/4-16)

-Max Working Pressure: 3000 PSI

Package Including：

1*Control Valve

Note：
Please make sure that the model and appearance of your equipment are exactly the same as our products.
It is the customer's responsibility to buy the right products. If you are not sure, please contact us in time.
Thank you for your cooperation
