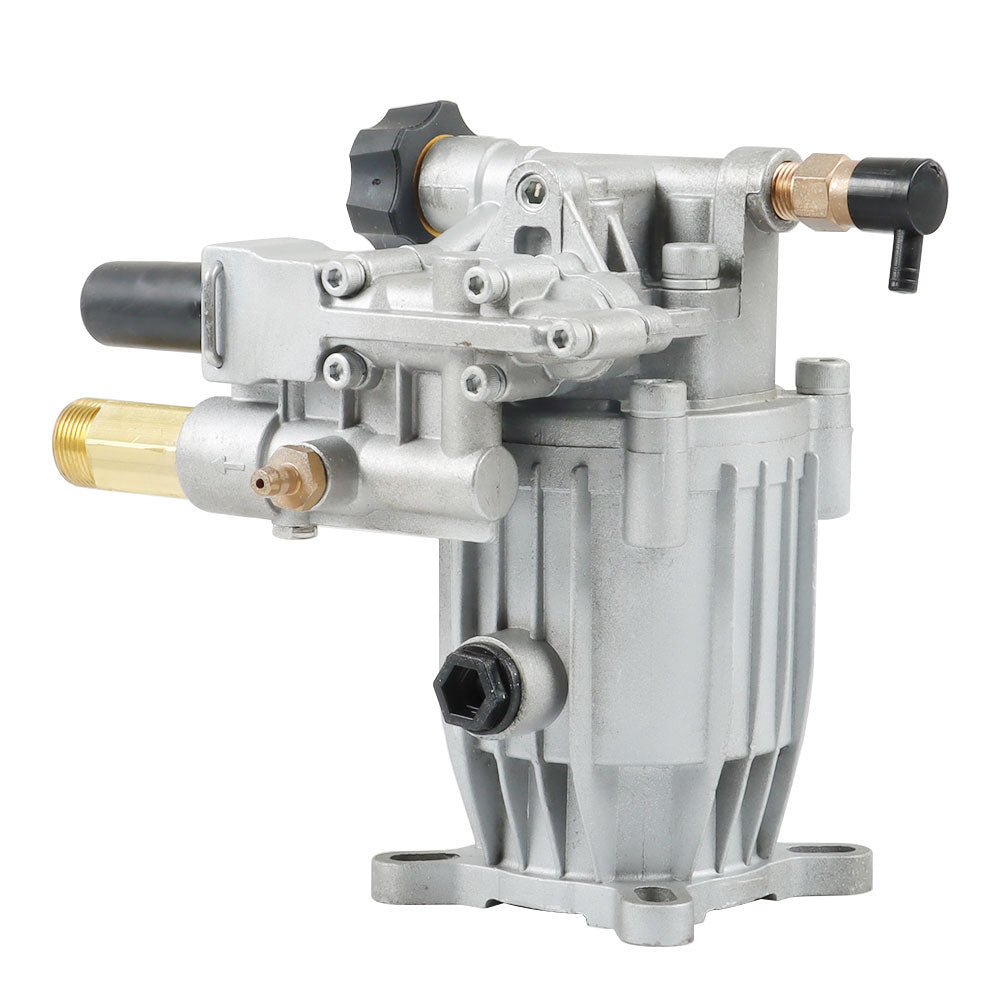

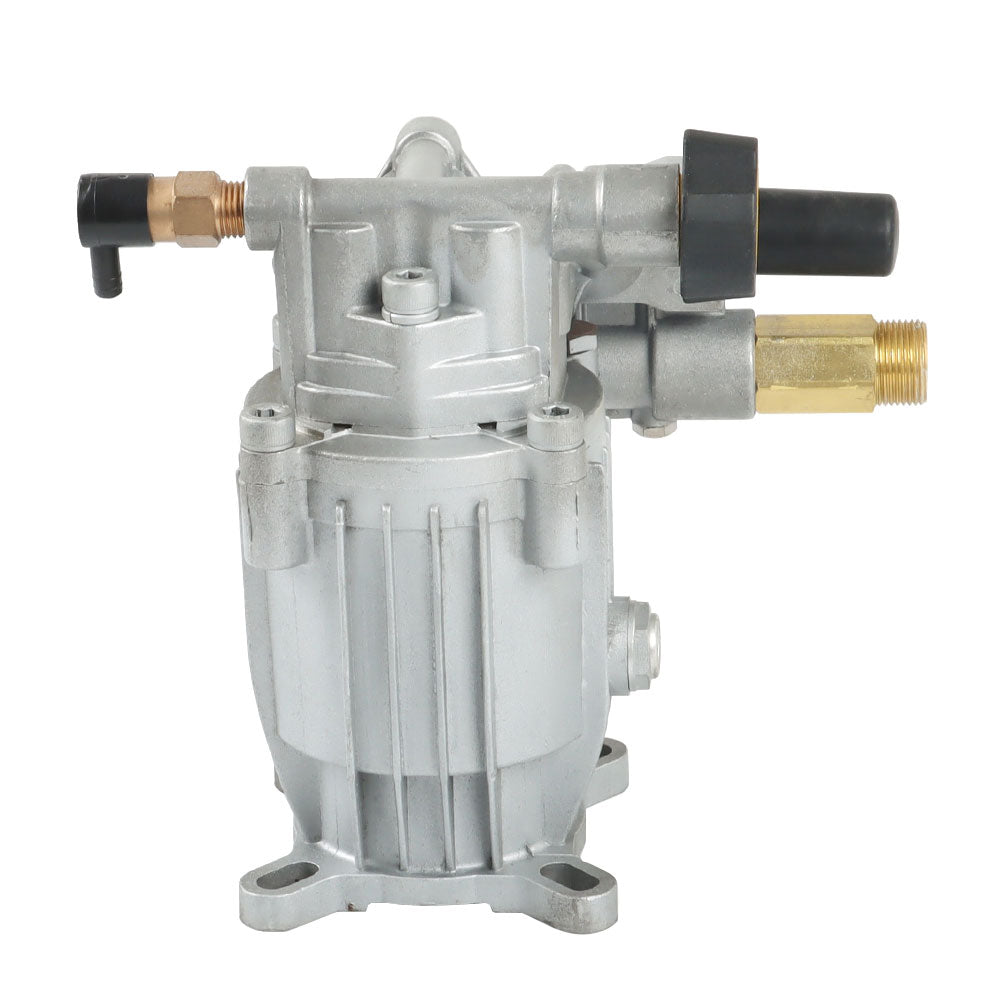

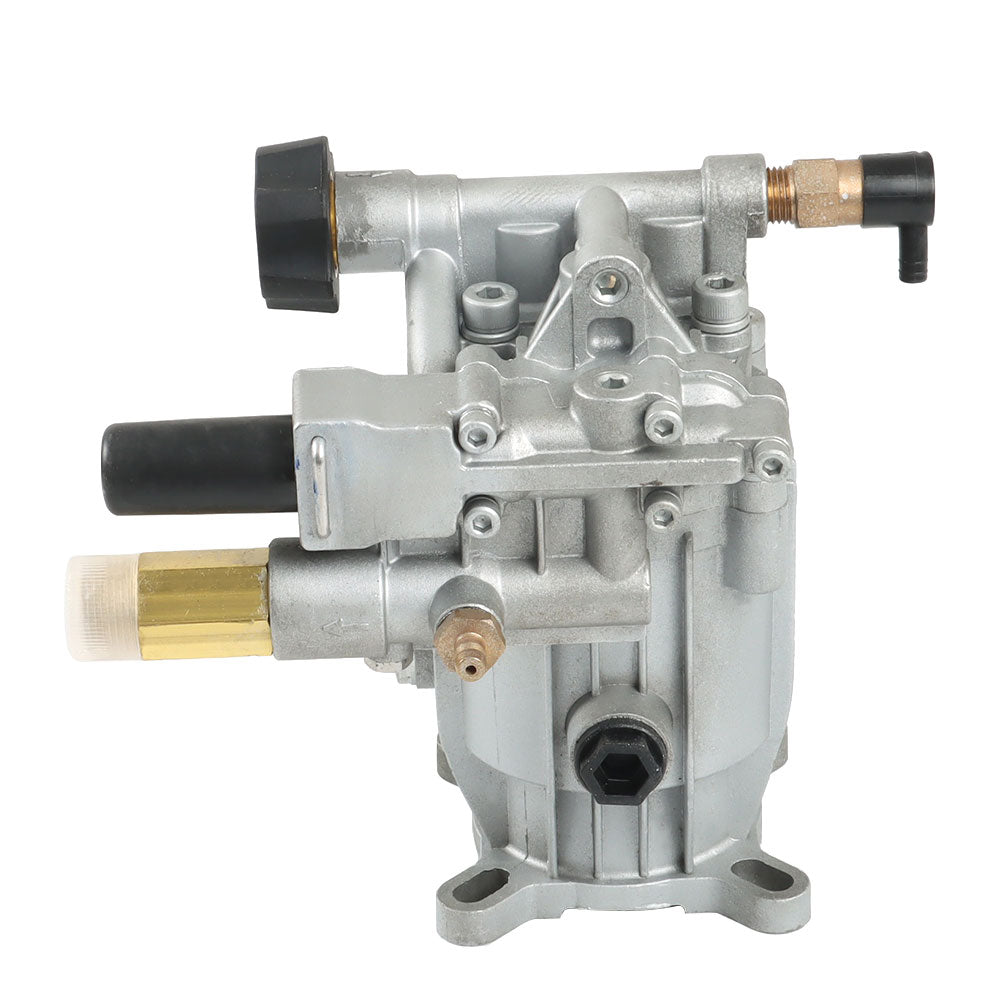

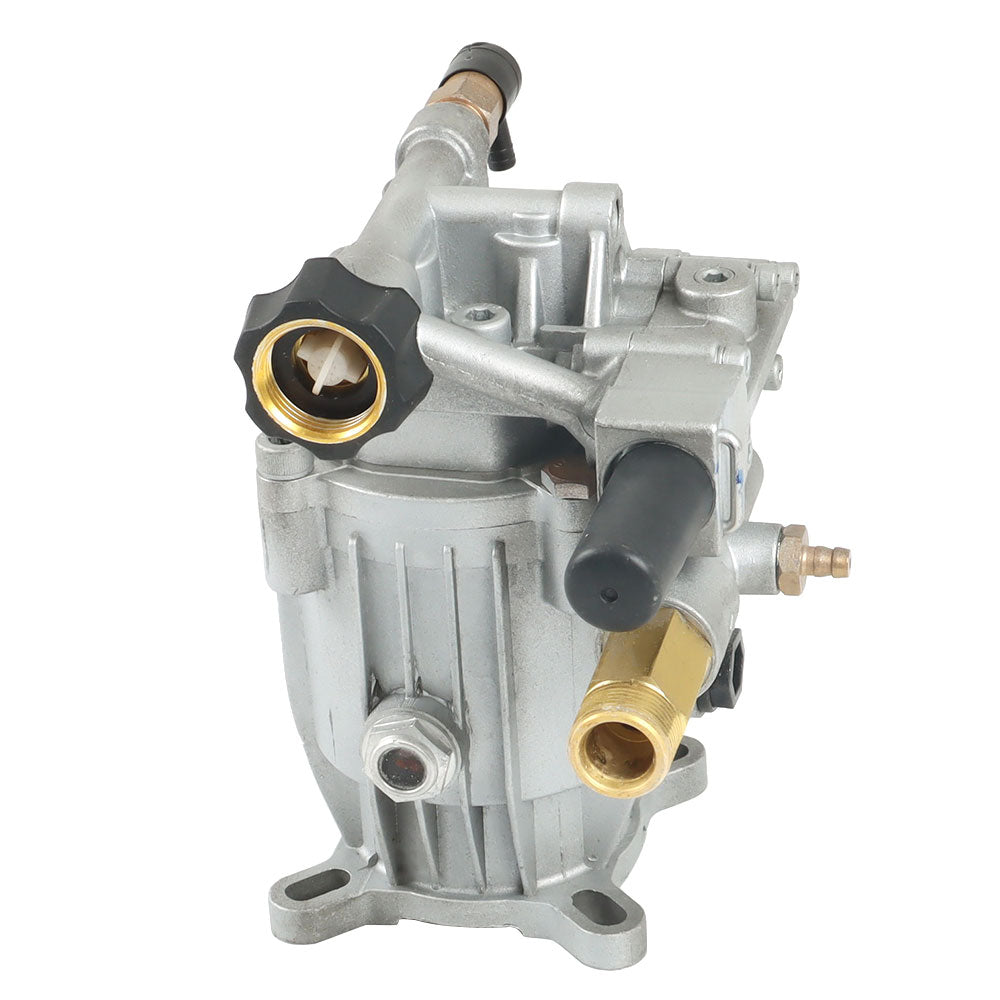

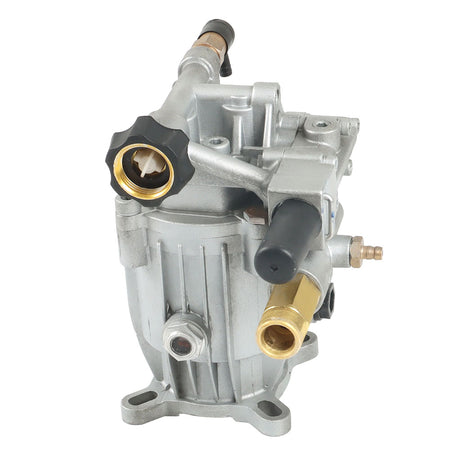

3000 PSI Pressure Washer Pump Horizontal 3/4" Shaft - MAX 2.5 GPM Oil Sealed

In stock
No reviews
$100.79
Free Shipping
Secure Payment
30 Day Free Return
Warranty Guarantee

Checking Vehicle Fit

Have Questions?
Market@labworkauto.com
Description Reviews

Specification：

  1. Engine Type: 3/4" Shaft Horizontal
  2. Max Pressure (psi/bar): 3000/200
  3. Max Flow Rate (gallon/min): 2.5GPM
  4. Engine HP required: 5.5 HP (Minimum)
  5. Head Material: Aluminum
  6. Bearing: Double Bearing
  7. Plunger: Stainless Steel
  8. Plunger seals: Oil Seals
  9. Shaft Depth: 2 5/8"
  10. Hole Distance to hole - 2 9/16”
  11. Keyway Size: 3/16"
  12. Connection: Inlet--3/4'' 14NH Garden Hose (Not 3/4 in.  - 11 1/2 NH),
  13. Outlet--M22x1.5-14mm
  14. Rated RPM: 3400
  15. Max.  Water Supply Temperature: 104°F
  16. Self suction: Yes
  17. Comes with Built-In Unloader
  18. Built-In Chemical Injector
  19. Comes with a FREE Thermal Relief Valve



Feature：

  1. Thermal Relief Valve for Durability: TRV protects the pump from overheating while in bypass mode'.   Releases small amounts of hot water and intakes cooler water to prevent overheating and extend the life of the pump
  2. Easy Start: Built-in for simple & quick cold starts to make the startup a breeze.
  3. 120 hours Running Time: 50 hours longer service life than other pumps!
  4. Maintenance Free: Pre filled Oil and double seal system, set it up directly and prevents oil/water leaks.   The crankcase is manufactured from fully anodized die-cast aluminum for protection against corrosion, and you never have to change the oil.   Precision polished stainless steel pistons deliver extended seal life
  5. Pressure Adjustable-Rotate the unloader valve to adjust the pressure
  6. Easy Connections: The Garden Hose Inlet and M22 high pressure outlet make for a simple setup to get your power washer up and running in no time
  7. Standard Mounting Options: The SAE standard bolt pattern fits most gas-powered pressure washers and simplifies the installation to start working as quickly as possible.   (Check your pressure washer's inlet and outlet orientation to ensure compatibility)



Compatible：

  1. Compatible with 3/4" Horizontal Shaft Pressure Washer & Engine: Up to 3000 PSI.   If you don't see your model below, just message us and we will confirm it for you!
  2. Homelite: 308418007, 309515003, 308418004, 308653057, UT80522B, UT80953B, UT80522A, UT80953A, UT80522D, UT80522E, HL252300, UT80953E
  3. Honda: GC190, GC160 (* 7/8" Shaft Engine is not Compatible)
  4. Simpson: MS60753 MS60852 MS60753, MS60788, MS60850, MS60799,MS61043 PS60841 MSH3125 PS80903b ALH3225
  5. Karcher: K2400HH, G2400HH, G2800OH, G3000OH, G3050OH, G2600OR, G2650HH, G2800OH, G3025OH, G3000BH G3025BH
  6. PowerStroke: PS80522, PS80903, UT80522, UT80953, PS80903A, 30841800
  7. Generac: 580.762011, 01675, 01675-0,1671,1675, 1293,1330, AXD2524GT-22mm, G24H,BXD2528, BXD2527G,598759870, 598859880
  8. For Briggs Stratton: 020204,020208,020209,020212, 020216 020220 ,020224, 020251, 020263 020275,020309
  9. Troy Bilt: 020200, 020208,020241, 01904, 020242, 020209,194106GS, 01042
  10. AR: RMV2.5G30-EZ, RMV25G30D-PKG
  11. Ryobi: RY80533
  12. Others: Exh2425, 520011, 7106900, 189943GS, 193486GS, 90028, 7108379,7106900 ,580752070, RD80947, RD80955

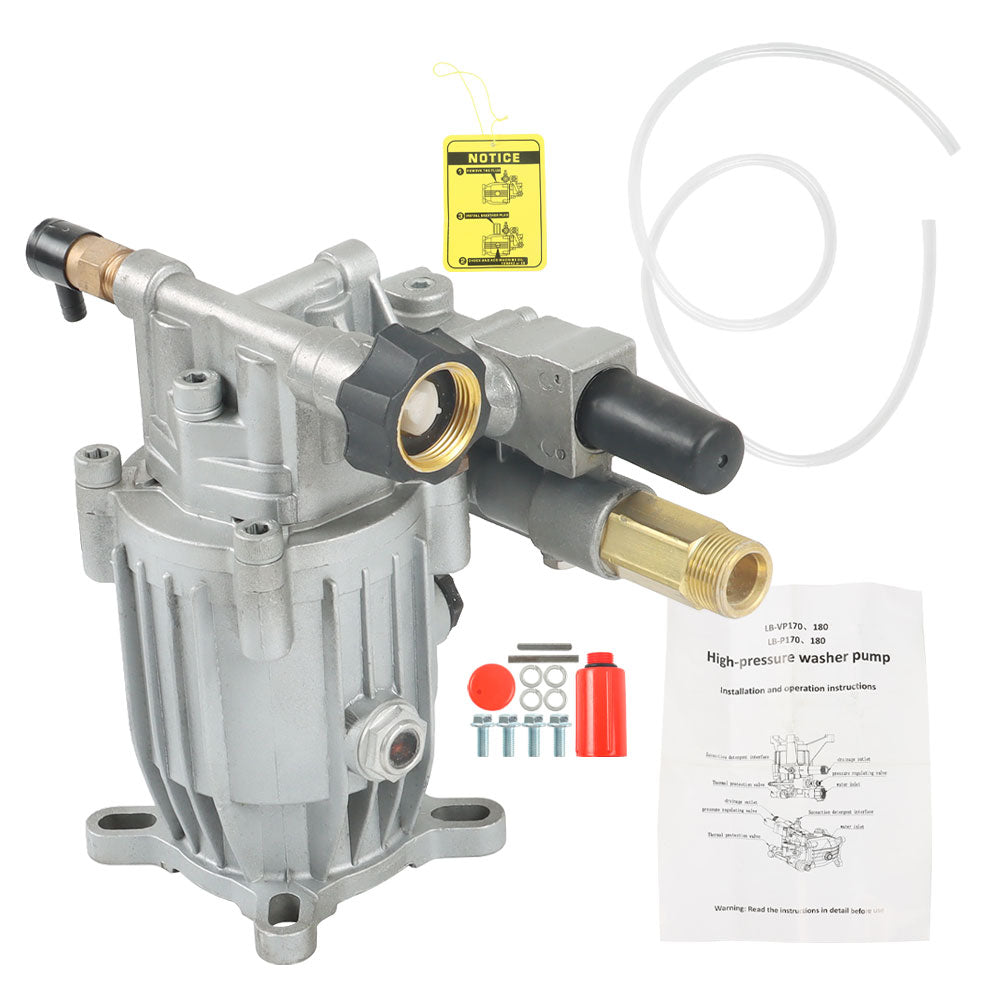

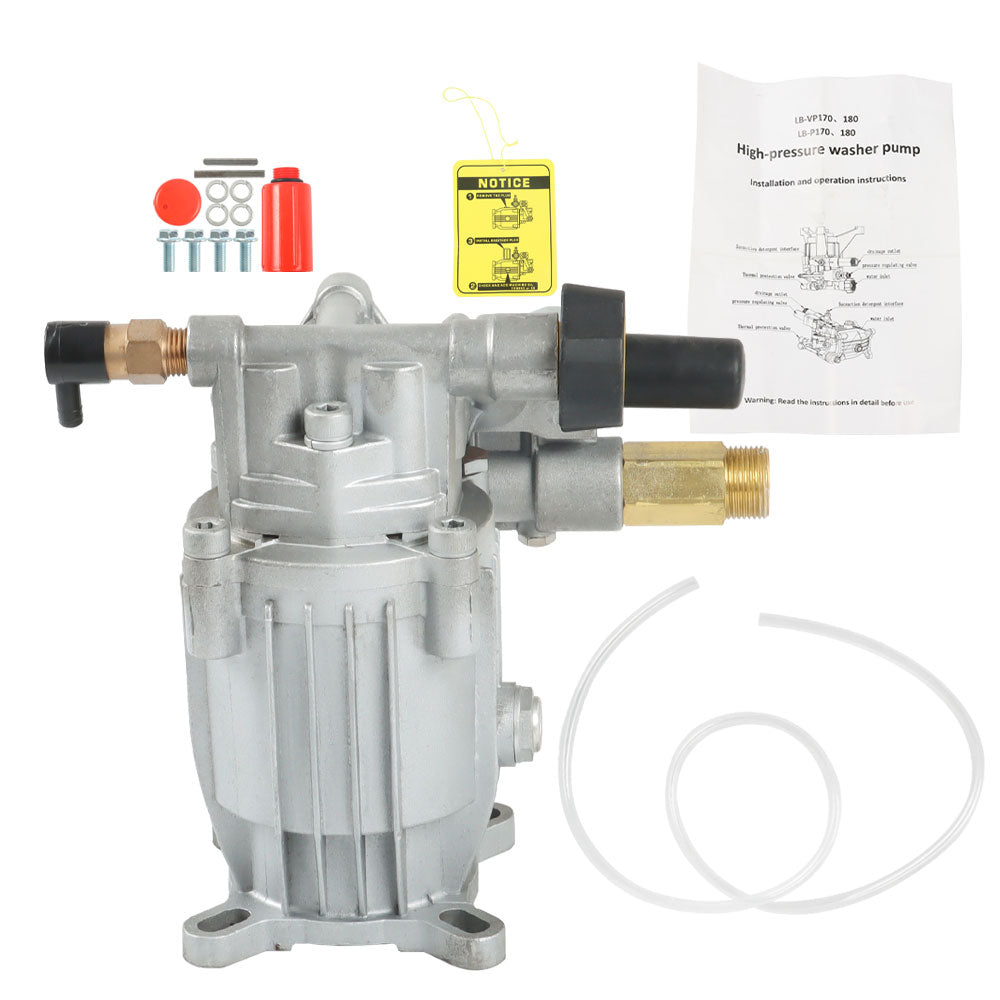

Package Including：

  1. 1 x Pump
  2. 1 x User manual
  3. 4 x Flange bolts
  4. 2 x Keys
  5. 1 x Detergent tube
  6. As shown in the figure





Note:

  1. Not Fit 7/8" Shaft Engine Pressure Washer.
  2. As this pump won't necessarily fit every model, Please do check the Installation dimensions or confirm with us.
  3. When installing, please ensure that the keyway is installed before running your pressure washer.   Allow water to flow freely through the pump until all air is out of the lines before firing the pressure washer up!
  4. If the size of your garden hose fittings is 3/4 in.   - 11 1/2 NH or others, you may need an adapter(no included) to avoid leakage or Unable to connect.
  5. Check the installation dimension in the product image to confirm if it is suitable for your pressure washer.   Or you can send detailed information to us, we will confirm for you.
  6. Make sure that the pump shaft key and engine shaft are properly matched and there is no skew.   Otherwise, the components will be damaged and the pump will be invalid.   *Please make sure your washing machine is ≥ 2400PSI, a lower pressure washer may not be able to drive the pump.
  7. Because this pump is not suitable for all models and brand pressure washers, please provide your original pump model and washer model before purchase so that we can help you make the right choice and avoid you buying the wrong product.
